Meanwhile, Big Bad Bob Campo has been hard at work:

This is the back and top glued together showing the carving process.  The 'step-downs' are done with an electric router and templates to give the graduation levels that will then be blended together with a hand held belt sander.  This has been started on the far side of the pic.  When done, final dimensioning will be done by hand to get everything shaped and smoothed, ready for paint.

These are sketches of artwork I found on the  web.  The plan is to place one of these in mother-of-pearl at the 12th fret on the fretboard.

After some more scribbling and doodling, I decided on the screaming eagle design.  Here it is with the pearl pieces cut and set in place on the fret board.  This shows the rosewood fretboard sitting inn the slot cutting jig i engineered, (since i'm too tight to buy a real one).  The slots are place at precise positions relative to each other so as to give proper tone on each note when the fret is pressed and the note is played.  The neat thing about this is some trigonometry comes in to play, as a 'rule of 18' is used.   The distance from the nut (at the tuner end of the board--above the eagle) and the bridge where the strings lay across at the opposite end of the guitar is divided by eighteen.  That is the location of the first fret.  The second fret is the distance from the first fret to the bridge, divided by 18, and so forth and so on.  That is why the distance between the frets gets less as you go down the fretboard.  Ain't numbers funny things?



At this point the board is still flat and the sides parallel.  The sides will be tapered  and sanded to a 12" radius before installing.

And, here is the board with the frets in it.  It has been tapered, "radiused" and sanded progressively down to 1500 grit sandpaper to make it smoothe.  Next is trimming the edges of the frets, installing white binding on the side with black dot markers, then gluing the board to the neck.   At this point, the neck is not yet attached to the body of the guitar..

The binding is glued on the fretboard, with black side marker dots for fret identification.  The sides of the neck still have to be sanded and smoothed to match the edged of the fretboard.

And voila!

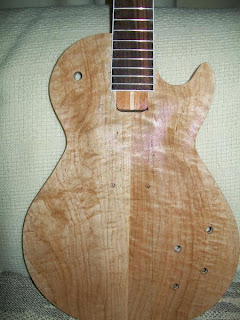

...the neck is dry fitted in place with the top carve 98% finished.  I put water on it so you could get an idea of what the top will look like when cleared.  I also have to cut out cavities for the pickups to fit in and cut a channel around the top edge of the maple to put white binding to cover the seam where the maple joins the cedar.
